Time Timer MOD support

Most questions can be answered by reading through the instructions below. Please read this Time Timer MOD support page carefully before you contact your (school) supplier. Thank you in advance.

All Time Timer products have a warranty of 1 year from date of purchase. If you believe that the problem with your Time Timer is covered by the warranty, we request you to contact your (school) supplier. Their contact details will be mentioned on your invoice.

For your information: The Time Timer MOD operates on 1  AA alkaline battery. All products are delivered excluding the battery. We recommend using a new AA (alkaline) quality battery in your Time Timer.

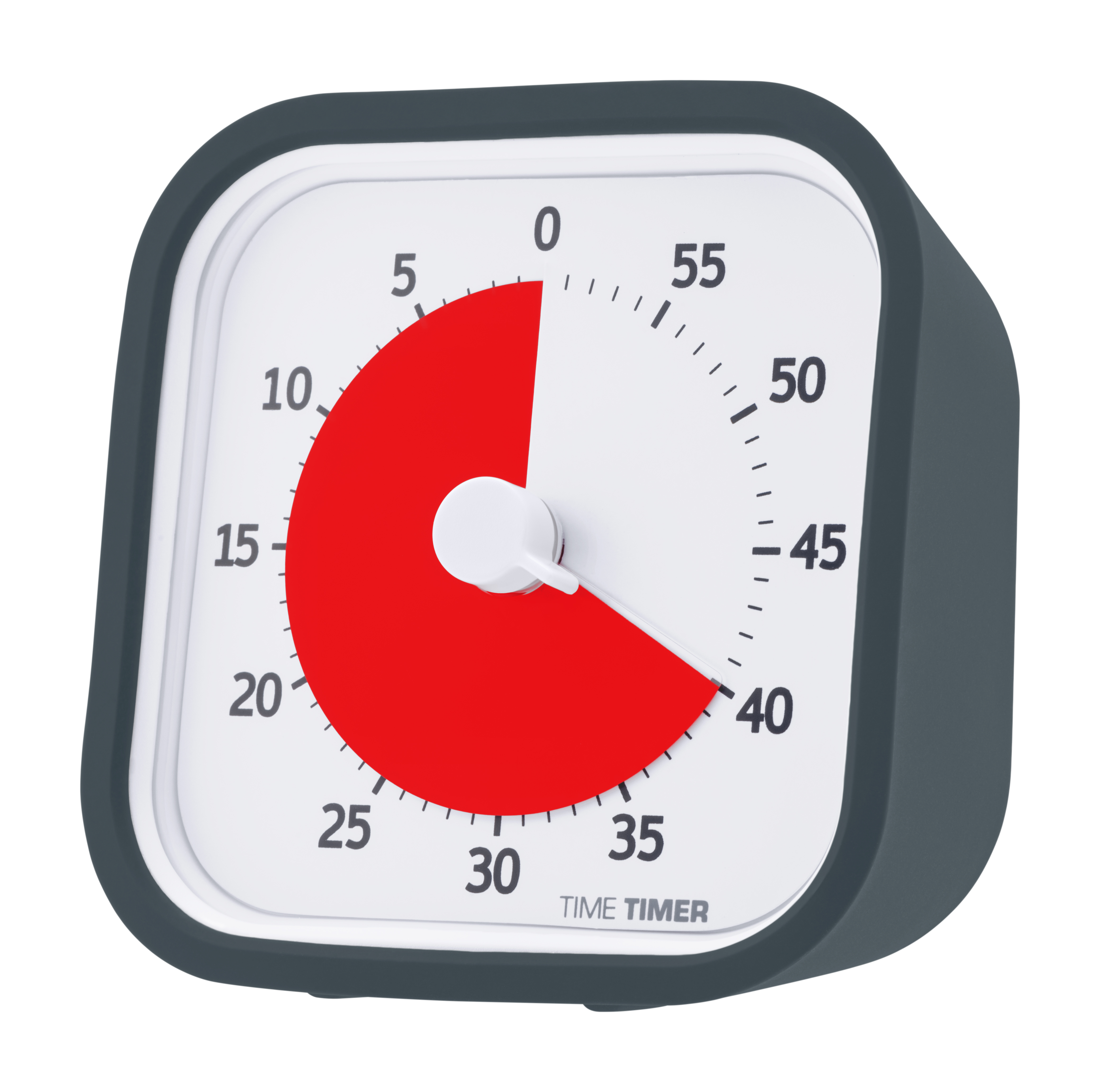

JAC5026 Time Timer MOD charcoal 2JAC5027BE Case for Time Timer MOD, BerryJAC5027BL Case for Time Timer MOD, turquoise blueJAC5027GR Case for Time Timer MOD, lime green

Placing a new battery:


Stap 1) Open the battery compartment at the rear of the Time Timer. You need a small size Philips head screwdriver (nr. 0).
Stap 2) Place the new AA alkaline battery with the negative (-) side first against the spring.
Stap 3) Replace the battery cover and tighten the screw.

Replacing the battery:

Stap 1) Open the battery compartment at the rear of the Time Timer. You need a small size Philips head screwdriver (nr. 0).
Stap 2) Remove the old battery by gently pushing to the left.
Stap 3) Place the new AA alkaline battery with the negative (-) side first against the spring.
Stap 4) Replace the battery cover and tighten the screw.

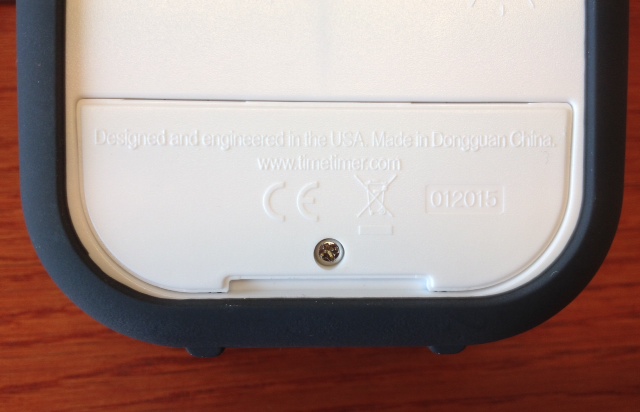

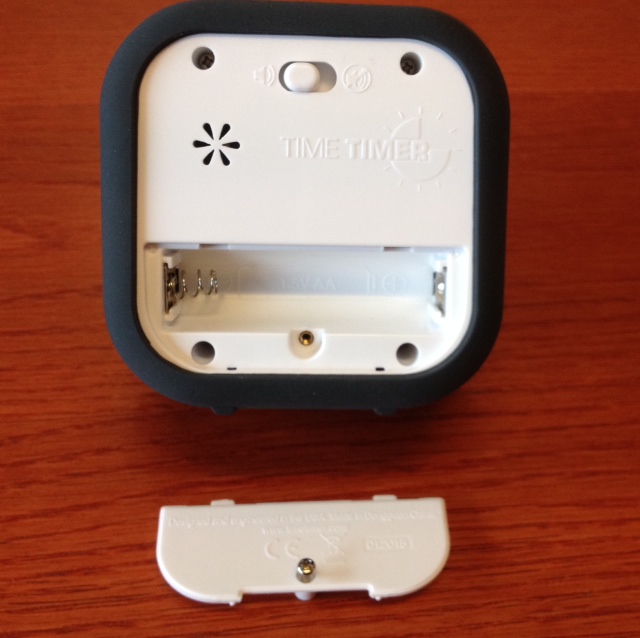

JAC5026 Time Timer MOD - battery compartment Time Timer MOD support - battery compartment open



The red disk is not moving:

–  Make sure the battery is installed properly and / or replace it with a new AA Alkaline battery (see replacing the battery).
– Turn the red disk several times gently from 0 to 60 and back again to remove any dust particles.

There is no end signal:

– Is the battery dead? Is the battery installed correctly? Make sure the battery is installed properly and / or replace it with a new AA Alkaline battery (see replacing the battery).
– Is the sound switched on? The switch is located on the rear of the Time Timer. Set the switch in the “on” position (to the left).

JAC5026 Time Timer MOD - on-off switch
